Description of the core features of the equipment

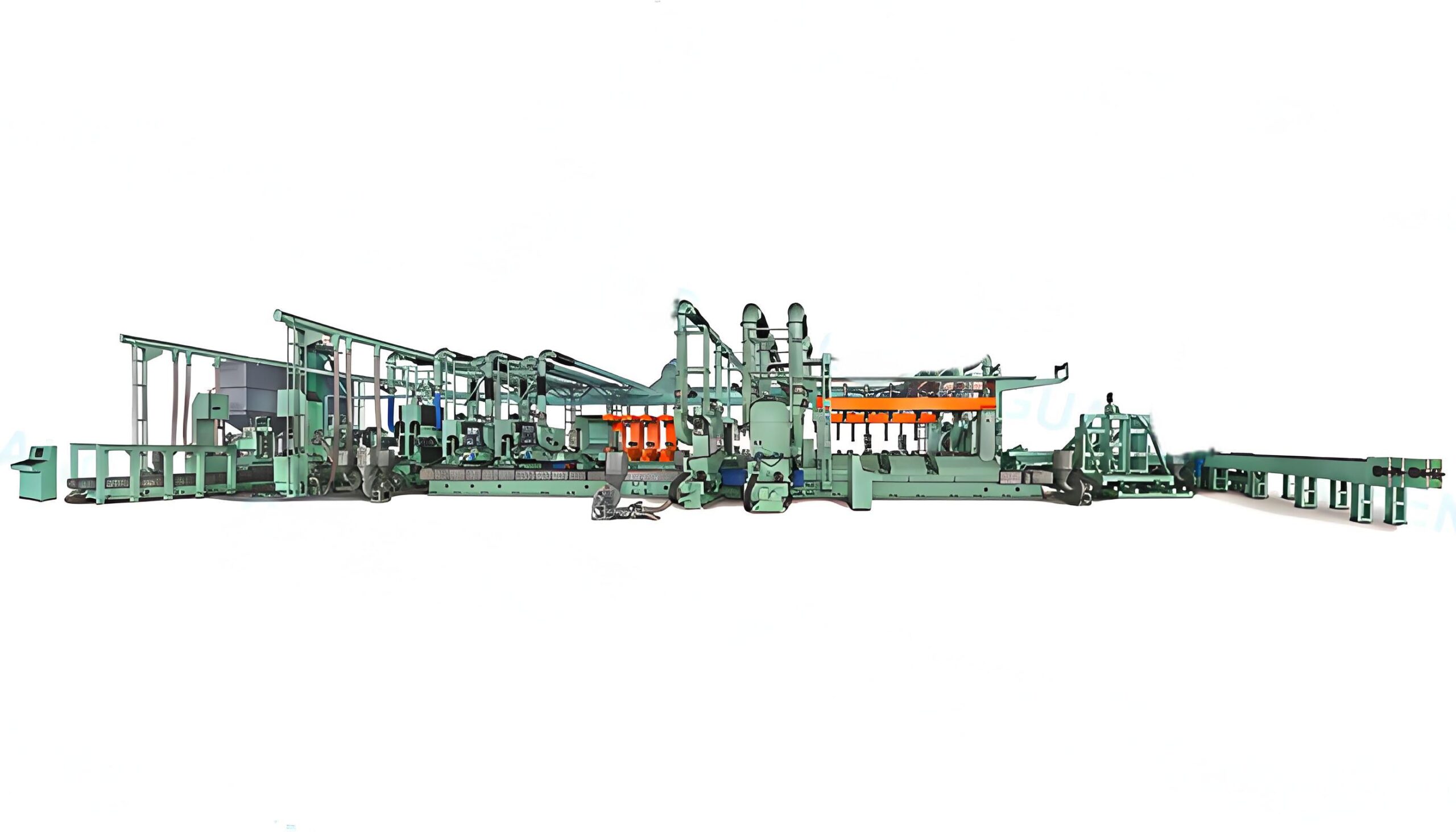

CGK.RZ.04 and CGK.RZ.17 are special machine tools for carbon block processing. The differences and commonalities are as follows:
Processing range:
- CGK.RZ.04 Adapted blank: 350×350×2000 ~ 850×850×4500 mm;
- CGK.RZ.17 Adapted blank: 400×400×2000 ~ 950×950×4200 mm, covering different specifications of carbon block production.
Processing capability:
- The maximum forming groove depth is 280mm and the single milling depth is 20mm, meeting the needs of carbon block groove processing;
- The production capacity is 2-4 blocks/hour (adjusted according to the complexity of the workpiece), ensuring mass production efficiency.
Precision control:
- The groove size error is ≤0.5mm, the angle error is ≤0.1°, the length, width and height error of finished carbon blocks is ≤±0.5mm, and the right angle error of adjacent surfaces is ≤0.05mm/500mm, ensuring high-precision processing of carbon blocks and adapting to the strict quality requirements of carbon blocks in industries such as electrolytic aluminum.
Application scenarios:
- It is mainly used for milling and forming and processing of carbon blocks in metallurgical industry (such as aluminum electrolytic cells), providing equipment support for the precision manufacturing of carbon products.
Product Database
| Technical Parameter | Unit | Index – CGK.RZ.04 | Index – CGK.RZ.17 |
|---|---|---|---|
| Model | CGK.RZ.04 | CGK.RZ.17 | |
| Max Machinable Carbon Block Blank Size | mm | 8508504500 | 9509504200 |
| Min Machinable Carbon Block Blank Size | mm | 3503502000 | 4004002000 |
| Max Formed Groove Depth | mm | 280 | 280 |
| Max Single Milling Depth | mm | 20 | 20 |
| Production Capacity | 2 – 4 pcs/h (Depends on Workpiece Size & Complexity) | 2 – 4 pcs/h (Depends on Workpiece Size & Complexity) | |
| Scratch, Double – Groove Width & Depth Error | mm | ≤0.5 | ≤0.5 |
| Double – Groove Right Angle Error | ° | ≤0.1 | ≤0.1 |
| Finished Carbon Block Height & Width Error | mm | ≤±0.5 | ≤±0.5 |
| Right Angle Error Between Adjacent Faces of Finished Carbon Block | mm | ≤0.05/500 | ≤0.05/500 |
