Overview

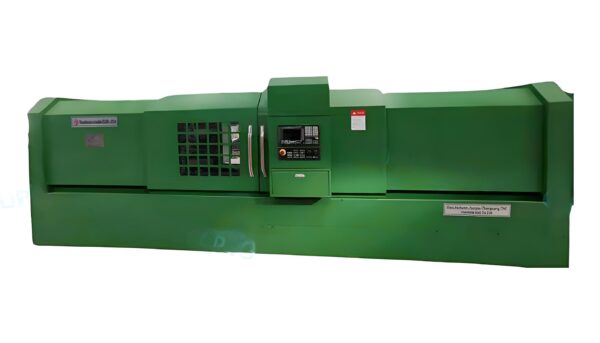

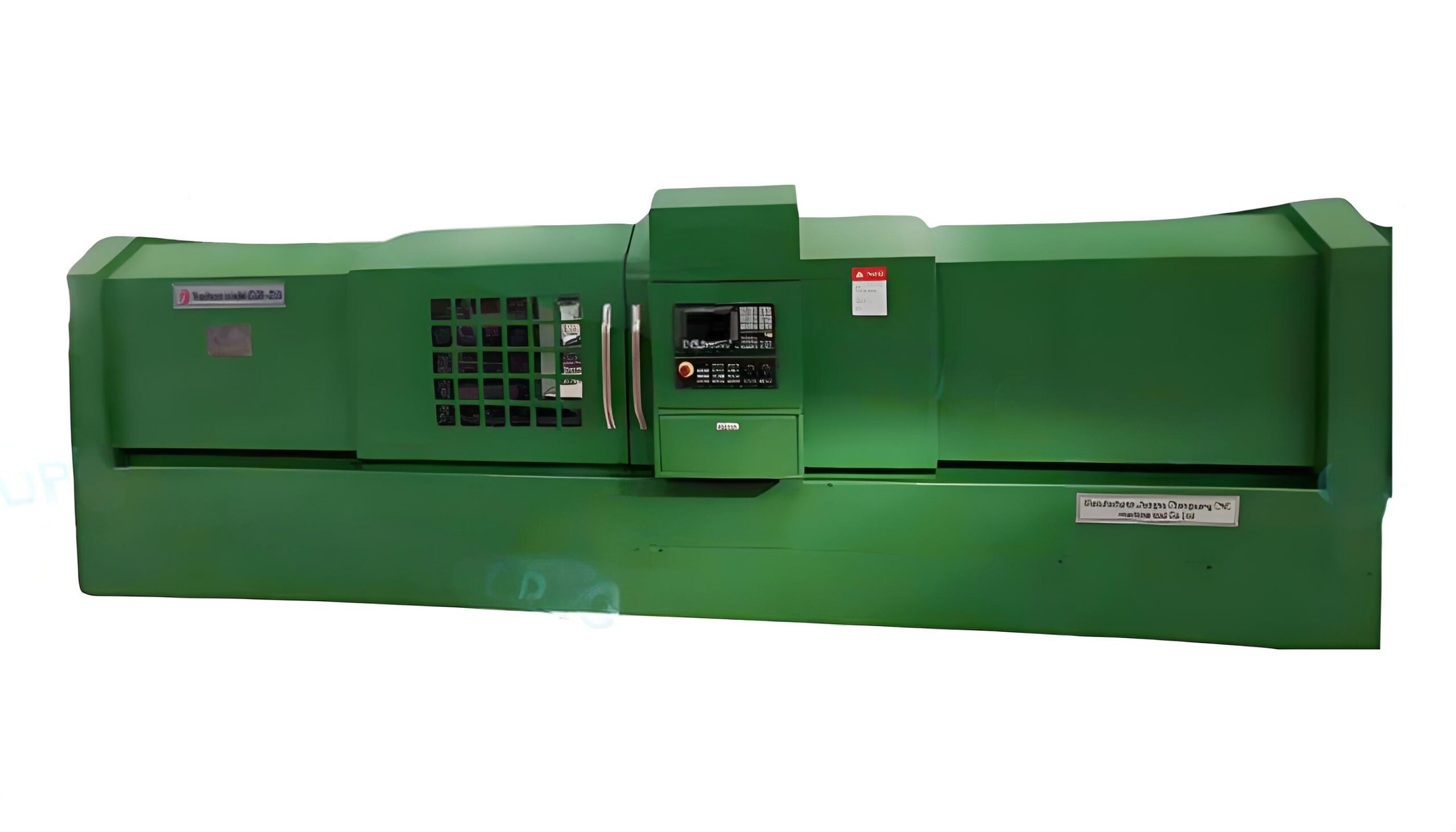

CGK-18 machine tool is a key processing equipment for graphite electrodes. Its control components are high-performance special CNC systems and software developed by our company. It is driven by Japanese AC servo motors. The key components are all world products. Combined with a unique mechanical structure, it realizes CNC single-ended combing processing of the inner cone thread of the electrode, and has functions such as floating length positioning, automatic or manual scraping of the end surface, pneumatic clamping of the workpiece, and automatic centering support.
Technical Note
This machine tool is a fully CNC electrode inner cone thread combing machine tool at home and abroad.
It has the functions of floating length positioning, automatic or manual scraping of the end surface, pneumatic clamping of the workpiece, automatic centering and other functions.
| Parameter Name | Unit | CGK-18 |
|---|---|---|
| Machining Electrode Diameter | mm | φ150 – φ550 |
| Machining Electrode Length | mm | 1300 – 2600 |
| Main Motor Power | kw | 4 |
| Spindle Speed | rpm | 0 – 20 Stepless Variable Speed |
| Thread Single – Tooth Pitch Error | mm | ±0.015 |
| Thread Pitch Cumulative Error | mm | ≤0.06/150 |
| Perpendicularity of Electrode Thread Center Line to End Face | mm | ≤0.015 |
| Flatness of Electrode End Face | mm | ≤0.03 |
| Machine Tool Weight | Ton | 5.5 |
